Geared Motors

geared motors

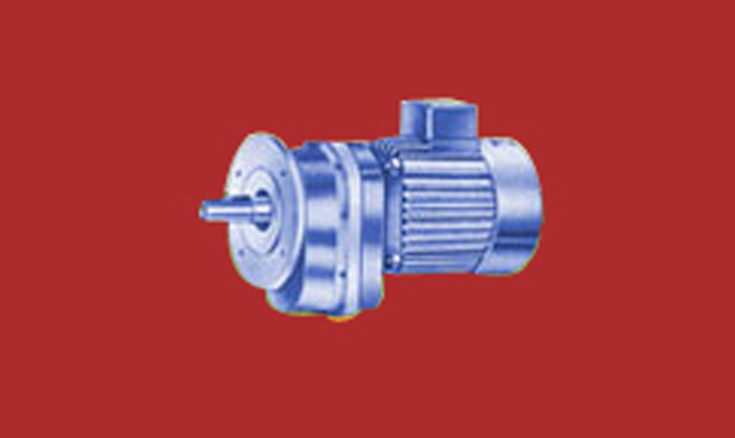

SHREE SHAKTI Geared Motors are designed to provide, a most efficient, economical and compact drive for low speed Applications. It is a most compact drive for low speed Applications.

It is a most compact combination of an electric motor (A.C. or D.C.) and a gear box (helical, worm or epicyclic) converting the high speed of the prime mover to low speed with maximum efficiency. These units are manufactured under the supervision of trained, personel, with strict quality control, and with latest technical knowwhow.

SHREE SHAKTI Geared Motors and Gear Boxes are available in single, Double, Triple and Quadruple reductions. Combination gear units such as Heliworm, Hollow Shaft etc., are also manufactured. They are available in foot, foot cum flange, Agitator type of mountings. The opposite page illustrates some of these designs.

The motor body, end covers, gear boxes are manufactured from close grained cast iron. All the gears and pinions are made out of top grade special alloy steels, which are heat treated and lapped for long life and silent running. The ball/roller bearings used are of good quality and are suitable for heavy duty application. The input and output shafts are of high quality steel. For low speeds, the motor shaft has integral pinion and the shaft is made out of special alloy steel.

The Electric Motor is designed for trouble free, economical performance. It seals off the input side of the gear box. Normally it is totally enclosed, fan cooled, continuously rated, Class B insulation operating on 400/440 volts, 3 phase, 50 cycles A.C. supply as per I.S :325. Class F or H insulation, IP 55 enclosures etc. can be offered.
